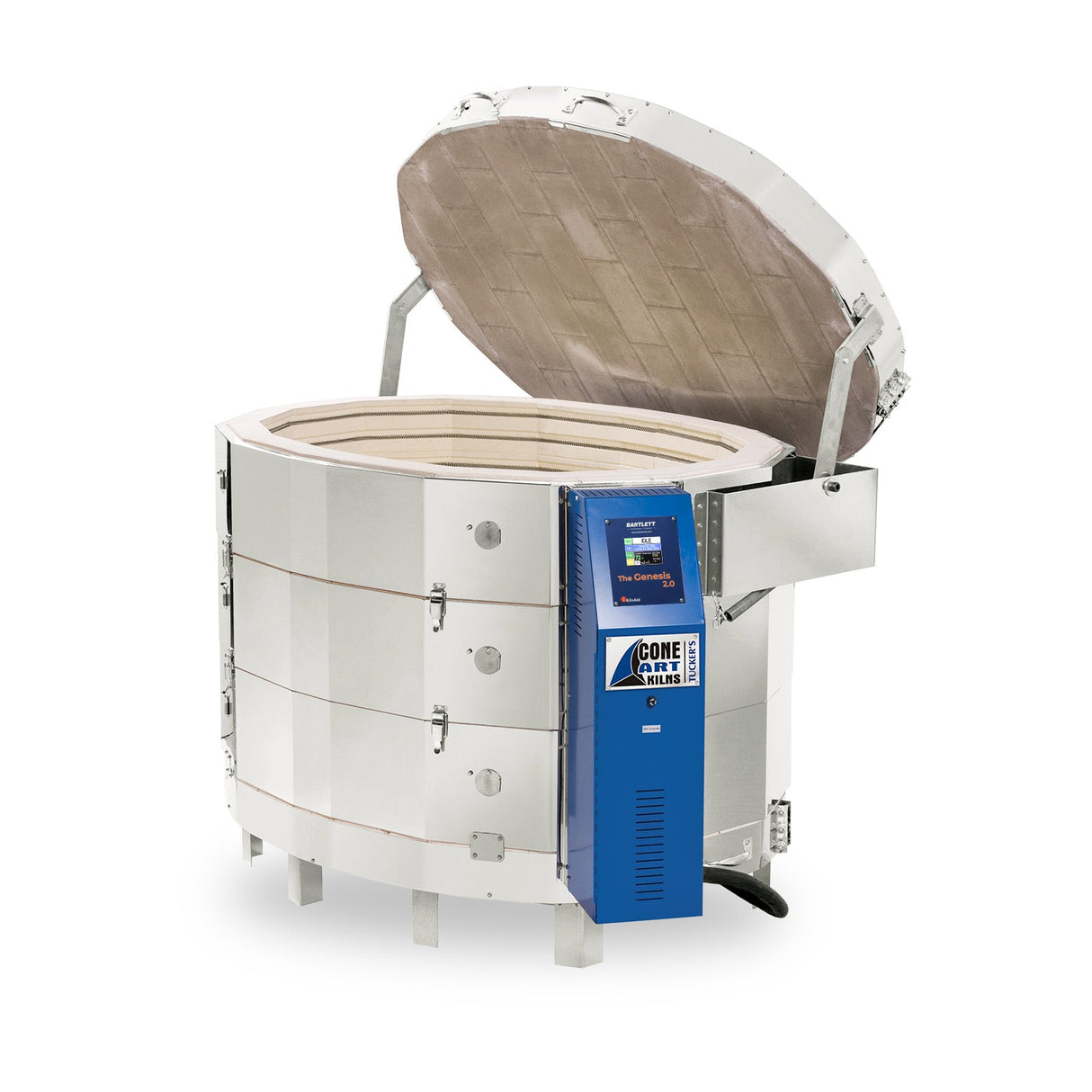

Cone Art GX4227D 16.5 Cu Ft 18 kW

The GX4227D is a True Cone 10 Kiln. Read about True Cone 10 vs Rated Cone 10 here.

The Tuckers Cone Art Kiln Model 4227D is a massive 16.5 cubic feet oval kiln with a full 42″ width, 31″ from front to back and a 27″ depth. The 4227D is designed for a busy production or sculpture studio.

The kiln is clad in a stainless steel jacket for extra protection and durability.

Features & Benefits

It is a double insulated kiln with a wall profile of 2.5 ” premium firebrick plus 1″ of block insulation. The extra insulation ensures a cooler, safer jacket, longer element life, and approximately 30 % savings in electricity costs.

The 4227D kiln comes equipped with Cone Art’s patented lid lifter at no extra charge, making lid lifting a single finger operation compared to a 2-person job with other kilns.

The heavy-duty Kanthal A-1 elements are standard along with a floor element for more even firings.

The jacket and fittings are all stainless steel or corrosion resistant metal.

The 4227D is equipped with the Wi-Fi  enabled Bartlett Genesis Touchscreen electronic controller which is mounted on an angled easy view control panel. The extra zone control comes standard at NO EXTRA CHARGE for excellent temperature control.

The Tucker’s Cone Art 4227D sets the standard for excellence in quality construction and reliability. There is no other Kiln on the market today that can come close to matching all of these features.

Furniture Kit

• Six 26″ square half shelves
• Twelve 26″ dia. half shelves
• 9 – 1″ Posts
• 9 – 2″ Posts
• 9 – 4″ Posts
• 9 – 6″ Posts
• 2 kilograms kiln wash

Technical Specifications

Model - GX4227D
Dimensions (inches): w (x l) x h Inside - 41 x 31 x 27
Sections - 3
Cubic Feet - 16.5
Ship Weight (Kgs) - 310 / Dimensions (in) - 48 x 38 x 35
kW - 18
Phase - 3
Amps 220V - 27.27A (Breaker 40A)
Copper Cable - 5 Core (3L+N+G) 16 Sq mm
