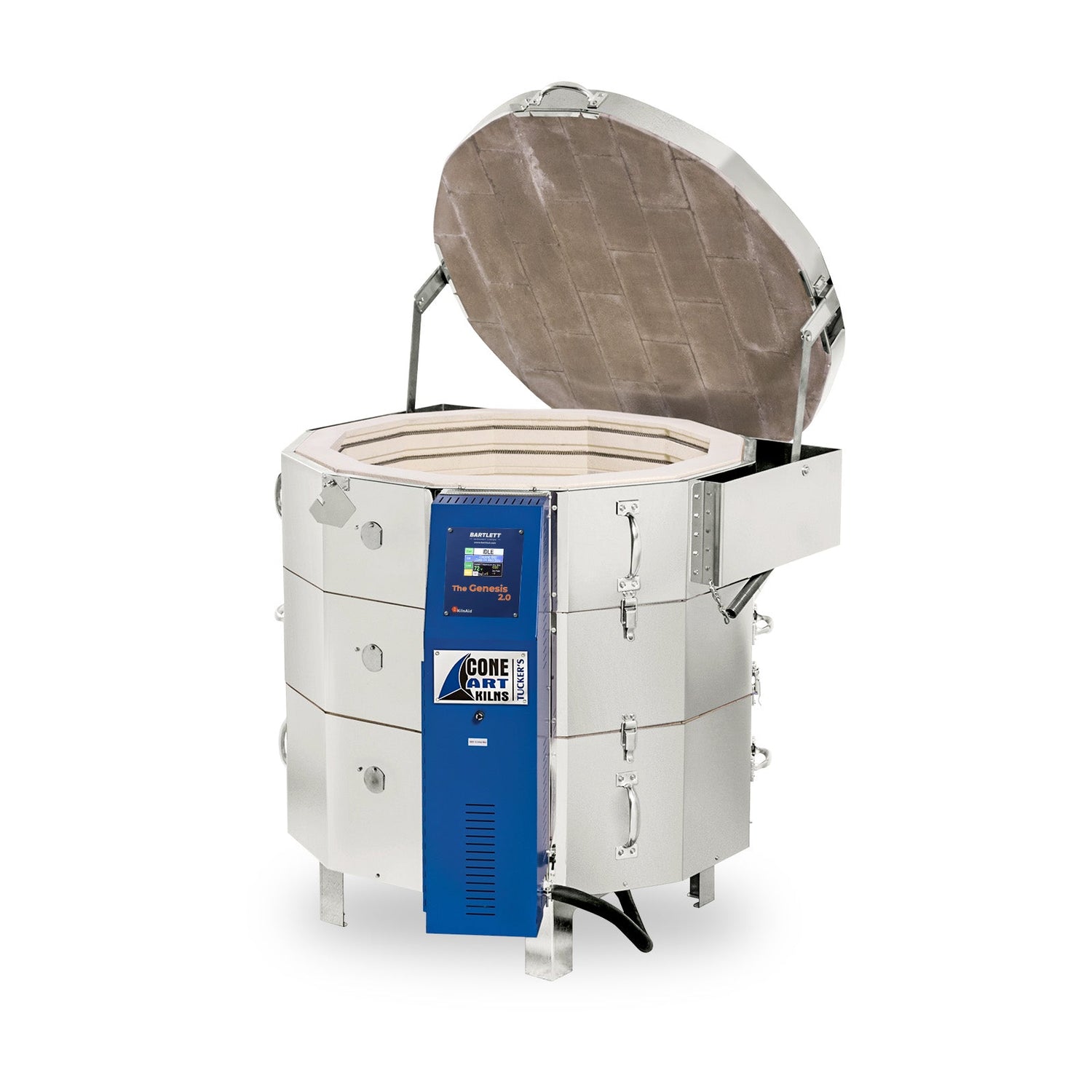

Cone Art GX2827D 10.0 Cu Ft 15.1 kW

The GX2827D is a True Cone 10 Kiln. Read about True Cone 10 vs Rated Cone 10 here.

The Tuckers Cone Art Kilns 2827D is a true production kiln that has been designed to fire easily to cone 10 even with high mass loads like tiles.

Double wall construction keeps energy efficiency high, and our standard element in the floor helps to ensure even firings every time. This kiln easily disassembles into 3 sections for easy delivery or shifting.

Features & Benefits

It is a double insulated kiln with 2 ½” of premium firebrick plus 1″ of block insulation. This double wall insulation ensures a safer, cooler jacket and approximately 30% energy savings over single wall kilns.

The 2827D kiln comes equipped with Cone Art’s patented lid lifter at no extra charge, making lid lifting a single finger operation compared to a 2-person job with other kilns.

The heavy-duty Kanthal A-1 elements are standard along with a floor element for more even firings.

The jacket and fittings are all stainless steel or corrosion resistant metal.

The 2827D is equipped with the Wi-Fi  enabled Bartlett Genesis Touchscreen electronic controller which is mounted on an angled easy view control panel. The extra zone control comes standard at NO EXTRA CHARGE for excellent temperature control.

The Tucker’s Cone Art 2827D sets the standard for excellence in quality construction and reliability. There is no other Kiln on the market today that can come close to matching all of these features.

Furniture Kit

• Sixteen 26″ dia. half shelves
• 6 – 1″ Posts

• 6 – 2″ Posts
• 6 – 4″ Posts
• 6 – 6″ Posts
• 2 kilograms kiln wash

Technical Specifications

Model - GX2827D
Dimensions (inches): w (x l) x h Inside - 28 x 28 x 27
Sections - 3
Cubic Feet - 10.0
Ship Weight (Kgs) - 190 / Dimensions (in) - 35 x 35 x 33
kW - 15.1
Phase - 3
Amps 220V - 20A (Breaker 25A)
Copper Cable - 5 Core (3L+N+G) 10 Sq mm
