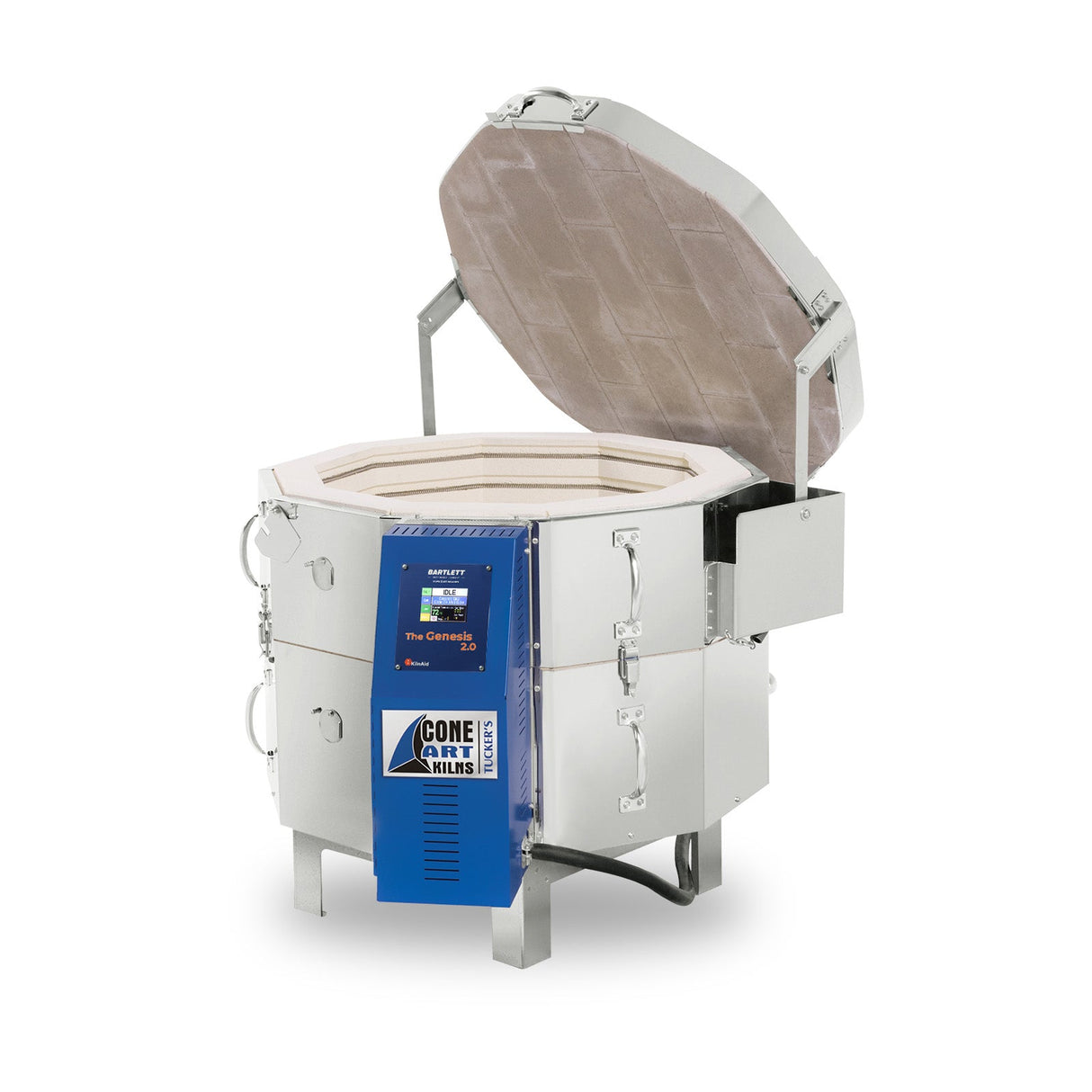

Cone Art GX2318D 4.7 Cu Ft 8.4 kW

The GX2318D is a True Cone 10 Kiln. Read about True Cone 10 vs Rated Cone 10 here.

The Cone art 2318D is rapidly becoming a favourite for home studios and schools. It is 18″ deep, which makes it much easier to load and unload. It fires easily to a true cone 10.

Features & Benefits

It is a double insulated kiln with 2 ½” of premium firebrick plus 1″ of block insulation. This double wall insulation ensures a safer, cooler jacket and approximately 30% energy savings over single wall kilns.

The 2318D kiln comes equipped with Cone Art’s patented lid lifter at no extra charge, making lid lifting a single finger operation compared to a 2-person job with other kilns.

The heavy-duty Kanthal A-1 elements are standard along with a floor element for more even firings.

The jacket and fittings are all stainless steel or corrosion resistant metal.

The 2318D is equipped with the Wi-Fi  enabled Bartlett Genesis Touchscreen electronic controller which is mounted on an angled easy view control panel. The extra zone control comes standard at NO EXTRA CHARGE for excellent temperature control.

The Tucker’s Cone Art 2318D sets the standard for excellence in quality construction and reliability.

Furniture Kit

• Four 21″ dia. full shelves
• Two 21″ dia. half shelves
• 6 – 1″ Posts
• 6 – 2″ Posts
• 6 – 4″ Posts
• 6 – 6″ Posts
• 2 kilograms kiln wash

Technical Specifications

Model - GX2318D
Dimensions (inches): w (x l) x h Inside - 23.5 x 23.5 x 18
Sections - 2
Cubic Feet - 4.7
Ship Weight (Kgs) - 125 / Dimensions -  30.5 x 30.5 x 23
kW - 8.4
Phase - 1
Amps 220V - 38.18A (Breaker 63A)
Copper Cable - 3 Core (L+N+G) 10 Sq mm
